The Story

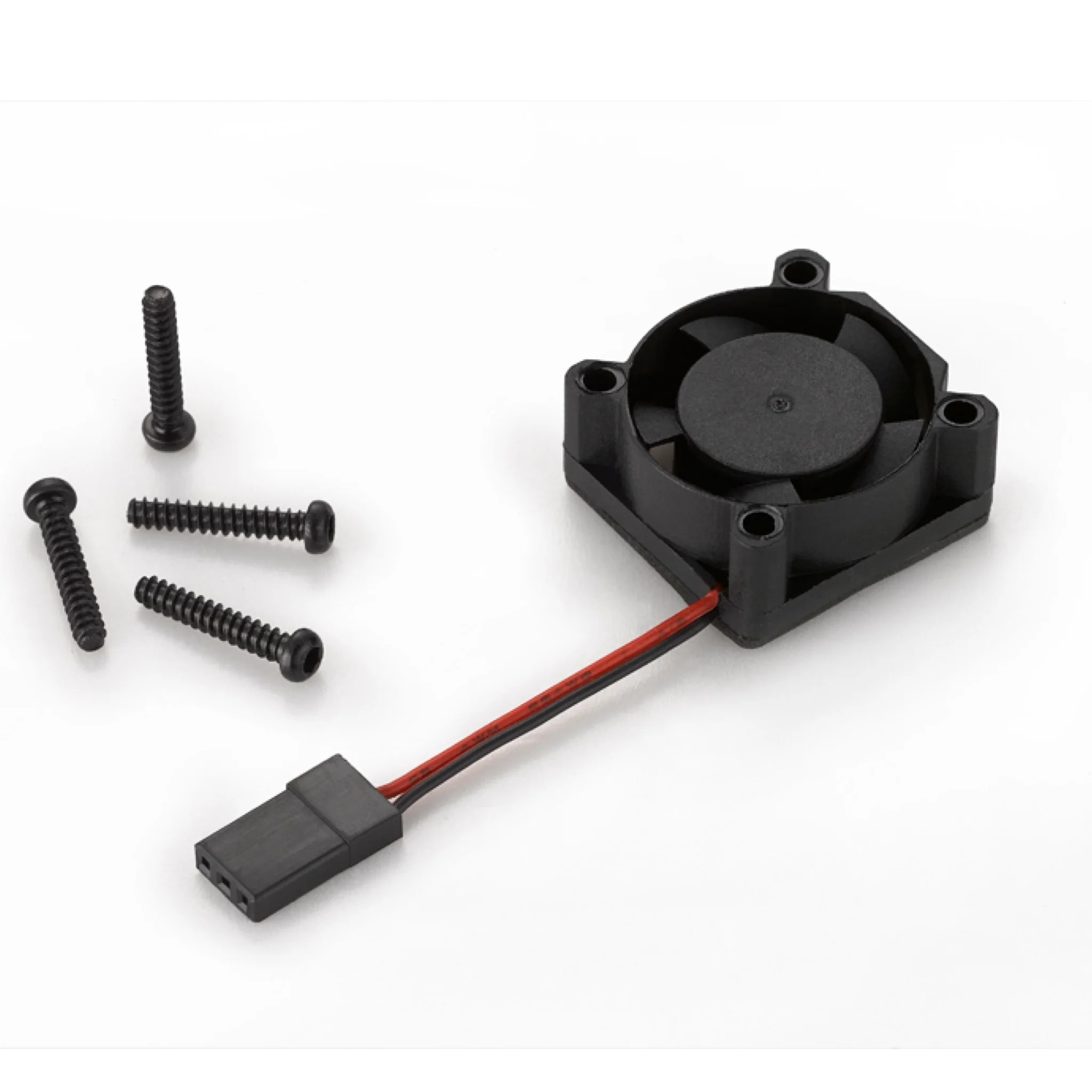

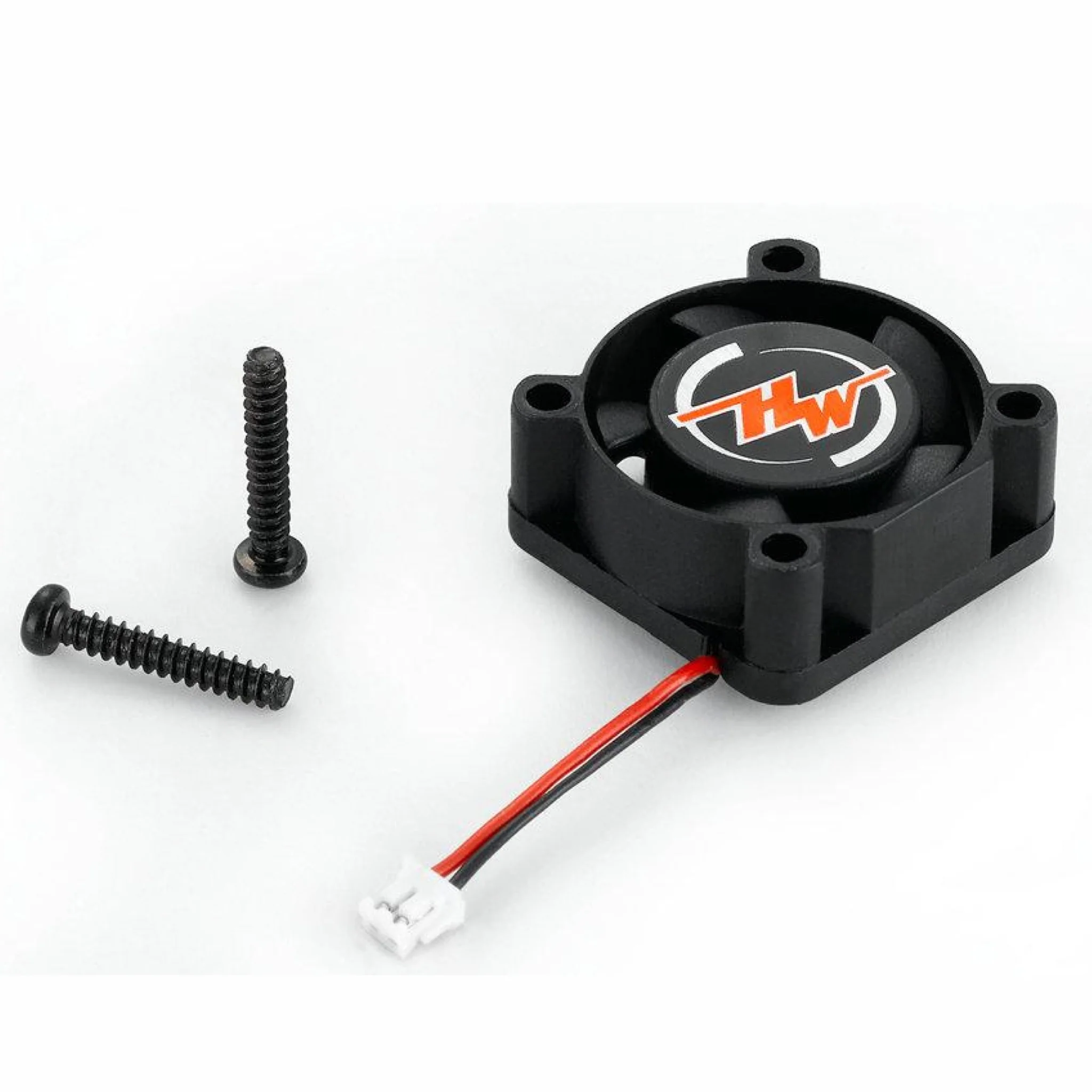

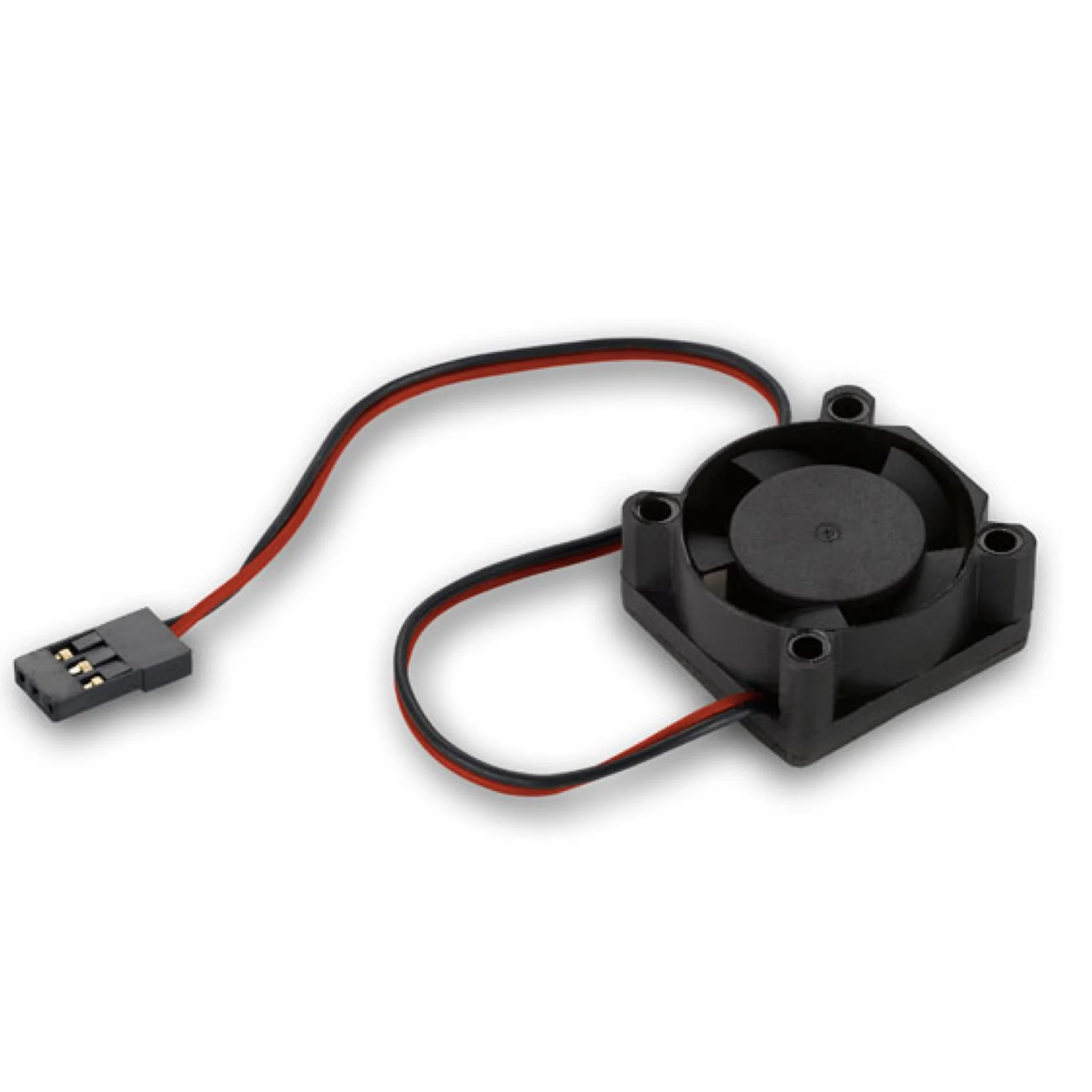

High Performance Cooling Fan for ESCs
- AXE R1/R2 ESC
- Xerun Stock Spec / 1s HD
- XERUN-120A V2.1 SD /Xerun 90A & 60A
- Ezrun WP 60A, 80A, Ezrun 60A
- Justock & Xtreme
- EZRUN MAX10 & MAX10-SCT
- QUICRUN 1080 / 1080 G2 / 880 Dual
Use instructions:
For 4-6 cell NiMH or 2S LiPo: No need to change the 5V cooling fan on the ESC
For 7-9 cell NiMH or 3S LiPo: Please choose a 12V cooling fan or supply the 5V fan from the receiver (+6V)
For 10-12 cell NiMH or 4S LiPo: Please choose a 12V cooling fan, and cut the output of the built-in BEC. Then supply the receiver with a UBEC (An additional external DC-DC regulator)
Specification
Size: 5V: 24.5mm (L) * 24.5mm (W) * 10mm (H)Weight: 7.2g
High-Performance Cooling Fans for HOBBYWING ESCs come in various sizes and power voltages. Each unit is checked and approved via ISO 9001 Quality Control procedure.
| ESC | Model p/n | Input | Feature |
| AXE R2 |
|
||
|
AXE R1/R2, QUICRUN WP 880 |
FANP 2510 JR3P 200mm |
|
|
|
Quicrun 10bl120 |
2510SH-5V-0.13A Black E (30860003) |
|
|
|
Justock G3 Quicrun |
2510SH-5V Black B (86080050) |
4-5cells NiMh/NiCd or 2 cells LiPo |
|
|
Ezrun 60A Justock Xtreme |
MP2510SH-12V Black A (86080051) |
7-12 cell NiMh/NiCd
or 3 cell LiPo |
|
|
Ezrun WP 60A SL Ezrun WP 80A SL |
MP2510SH-5V Black A (86080052) |
4-5 cell NiMh/NiCd or 2 cell LiPo |
|
|
Ezrun MAX10 Ezrun MAX10 SCT QUICRUN |
MP2510SH-6V-0.17A-BLACK (30860005) |
|
